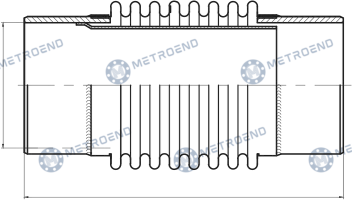

Technical drawing
· /
Expansion Joints
Metal Bellow Expansion Joint
- Working pressure PN16
-
Working temperature
-80°C /
+427°C - Connection type EN1092-2 MALZEME ÖZELLİKLERİ
Documents
Product catalog page
PDF 1 page(s) 326 KB EN 01.08.2026
What it does
Expansion Joints
An expansion joint is a flexible connection element that takes up the movement caused in a pipeline by temperature change, vibration, installation misalignment or ground movement, preventing stress from being transferred to the pipe, equipment and supports. Correct selection depends on the type of movement (axial, lateral, angular) and its magnitude; choosing the wrong type does not accommodate the movement and leads to early fatigue of the bellows. The arrangement of fixed and sliding supports on the line is determined together with the design so that the expansion joint works as intended.
Where it is used
Application areas
- 01 Power Plants
- 02 Chemical - Petrochemical
- 03 Maritime Applications
- 04 Heating - Cooling Systems
- 05 Food
- 06 Mining Applications
- 07 Water - Wastewater
Dimensions
Dimension table
11 rows × 12 columns
← scroll horizontally →
| DN | ØD | Øk | Øg | Øb | Ødxn | L: 30mm FLL | L: 30mm KBL | L: 30mm FLL | L: 30mm KBL | L: 60mm FLL | L: 60mm KBL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 115 | 85 | 68 | 16 | 14x4 | 120 | 170 | - | - | 2 | 0,20 |
| 32 | 140 | 100 | 78 | 16 | 18x4 | 120 | 170 | - | - | 3,5 | 0,45 |
| 40 | 150 | 110 | 88 | 16 | 18x4 | 120 | 170 | - | - | 4 | 0,60 |
| 50 | 165 | 125 | 102 | 18 | 18x4 | 120 | 170 | - | - | 4,5 | 0,75 |
| 65 | 185 | 145 | 122 | 18 | 18x4 | 120 | 170 | 180 | 230 | 6 | 1,10 |
| 80 | 200 | 160 | 138 | 20 | 18x8 | 120 | 190 | 180 | 230 | 6,7 | 1,50 |
| 100 | 220 | 180 | 158 | 20 | 18x8 | 130 | 190 | 190 | 260 | 8,2 | 2,20 |
| 125 | 250 | 10 | 188 | 22 | 18x8 | 140 | 200 | 190 | 260 | 10,5 | 2,60 |
| 150 | 285 | 240 | 212 | 22 | 22x8 | 140 | 200 | 200 | 280 | 15,5 | 3,40 |
| 200 | 340 | 295 | 268 | 24 | 22x12 | 140 | 200 | 200 | 280 | 19 | 4,85 |
| 250 | 405 | 355 | 320 | 26 | 26x12 | 150 | 200 | 210 | 280 | 21,5 | 10,90 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | DØ kØ gØ NDØ | ||
| 2 | FLANŞ | FLANGE | ST37 / AISI304 / AISI316 |
| 3 | LAYNER | SLEEVE | SPRING STEEL |
| 4 | KÖRÜK | RUBBER | EPDM / NBR |
