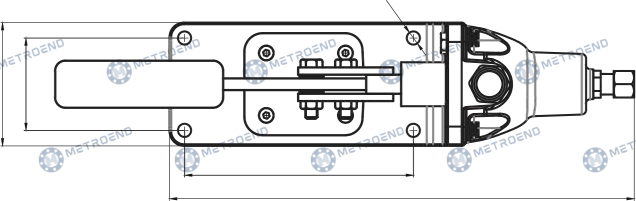

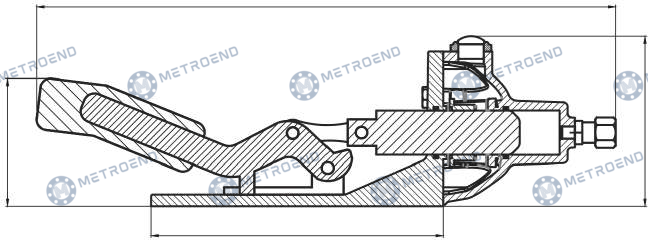

Technical drawing
· /
Hydraulic Control Levers
Hydraulic Control Lever
Documents
Product catalog page
PDF 1 page(s) 255 KB EN 01.08.2026
What it does
Hydraulic Control Levers
A hydraulic control lever is the control unit from which quick closing valves are triggered remotely. A single movement of the lever generates pressure in the hydraulic line and the connected valves close simultaneously. It is normally installed at a point that remains accessible in an emergency, such as the engine room exit, labelled with the list of valves it closes.
Where it is used
Application areas
- 01 A hydraulic quick-closing lever is a control mechanism used to operate quick-closing valves remotely using hydraulic power.
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | GGG40 |
| 2 | ŞASİ | CHASSIS | GGG40 |
| 3 | O-RING | O-RING | NBR |
| 4 | BURÇ | BUSH | MS58 |
| 5 | SİLİNDİR | CYLINDER | ST37 |
| 6 | KOL | LEVER | ST37 |
| 7 | CIVATA | BOLT | ST37 |
| 8 | TAPA | PLUG | AISI304 |
| 9 | YAĞ GÖSTERGESİ | OIL EYE | GLASS |
| 10 | SOMUN | NUT | ST37 |
| 11 | 78 | ||
| 12 | 200 | ||
| 13 | 48 36 | ||
| 14 | 156 |
