Bronze Threaded Static Balancing Valve

Working pressure PN25
Working temperature -10°C / +120°C
Connection type ISO7

Get a quote on WhatsApp

Documents

Product catalog page

PDF 1 page(s) 273 KB EN 01.08.2026

View Download PDF

What it does

Balancing Valves

A balancing valve equalises the flow between branches of heating and cooling systems so that each circuit receives the flow rate assumed in the design. In an unbalanced system, branches close to the pump receive too much flow and distant branches too little; the result is that some spaces are not heated and the pump runs harder than necessary. Static balancing valves allow the flow rate to be read from the pressure difference measured at their test nipples and the setting to be locked numerically, so that the value set during commissioning cannot be altered accidentally afterwards.

Where it is used

Application areas

01 Power Plants
02 Chemical - Petrochemical
03 Maritime Applications
04 Heating - Cooling Systems
05 Food
06 Mining Applications
07 Water - Wastewater

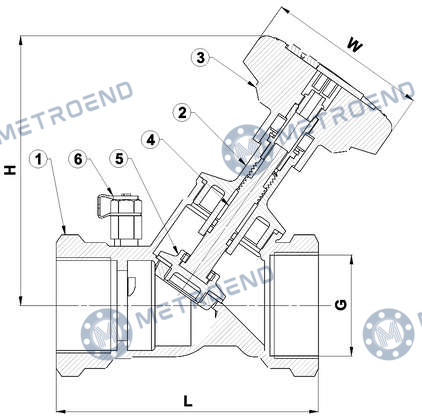

Dimensions

Dimension table

6 rows × 7 columns

Bronze Threaded Static Balancing Valve — Dimension table
kolon_1*	ISO7	kolon_3*	kolon_4*	kolon_5*	kolon_6*	PN25
1	GÖVDE		BODY			RG5
2	KAPAK		BONNET			BRASS
3	HENDIL			HANDWHEEL		EBONITE
4	MİL		MİL			BRASS
5	DİSK		DISC			BRASS
6		ÖLÇÜM PROBU			MEASUREMENT PROBE	BRASS

* This column heading is embedded inside the technical drawing in the source PDF, so it could not be read as text. The values are correct; only the column name still has to be entered manually.

Material

Material specifications

No	Part name (TR)	Part name (EN)
1	GÖVDE	BODY RG5
2	KAPAK	BONNET BRASS
3	HENDIL	HANDWHEEL EBONITE
4	MİL	MİL BRASS
5	DİSK	DISC BRASS
6	ÖLÇÜM PROBU	MEASUREMENT PROBE BRASS
