Brass Threaded Swing Check Valve

Working pressure PN16
Working temperature -10°C / +90°C
Connection type DIN2999

Get a quote on WhatsApp

Documents

Product catalog page

PDF 1 page(s) 253 KB EN 01.08.2026

View Download PDF

What it does

Check Valves

A check valve is an automatic safety component that allows fluid to pass in one direction only and closes off reverse flow by itself. It requires no external actuation: closing occurs mechanically when flow stops and back pressure builds up. Check valves are used to prevent backflow and water hammer at pump outlets, to prevent reverse flow on boiler feed lines, and to isolate branches on lines fed from more than one source. Spring-loaded types permit both vertical and horizontal installation, swing types operate with low pressure drop, and dual-plate and disc types are preferred where a short face-to-face dimension is required.

Where it is used

Application areas

01 Chemical - Petrochemical
02 Water - Wastewater
03 Heating - Cooling Systems
04 Maritime Applications
05 Mining Applications
06 Power Stations

Dimensions

Dimension table

7 rows × 6 columns

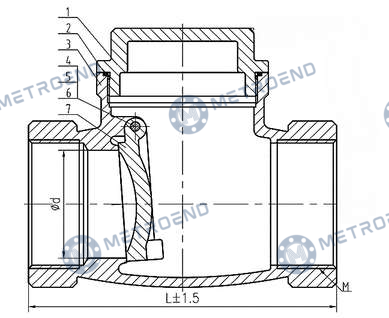

Brass Threaded Swing Check Valve — Dimension table
kolon_1*	DIN2999	kolon_3*	kolon_4*	kolon_5*	PN16
1	TAPA		PLUG		MS58
2		TAPA CONTASI		PLUG GASKET	EPDM
3	GÖVDE		BODY		MS58
4	CIVATA		BOLT		MS58
5		KLAPE CONTASI		DISC GASKET	EPDM
6	MİL		PIN		MS58
7	KLAPE		DISC		MS58

* This column heading is embedded inside the technical drawing in the source PDF, so it could not be read as text. The values are correct; only the column name still has to be entered manually.
