Bronze Threaded Swing Check Valve

Working pressure PN20
Working temperature -20°C / +170°C
Connection type DIN2999

Get a quote on WhatsApp

Documents

Product catalog page

PDF 1 page(s) 274 KB EN 01.08.2026

View Download PDF

What it does

Check Valves

A check valve is an automatic safety component that allows fluid to pass in one direction only and closes off reverse flow by itself. It requires no external actuation: closing occurs mechanically when flow stops and back pressure builds up. Check valves are used to prevent backflow and water hammer at pump outlets, to prevent reverse flow on boiler feed lines, and to isolate branches on lines fed from more than one source. Spring-loaded types permit both vertical and horizontal installation, swing types operate with low pressure drop, and dual-plate and disc types are preferred where a short face-to-face dimension is required.

Where it is used

Application areas

01 Chemical - Petrochemical
02 Water - Wastewater
03 Heating - Cooling Systems
04 Maritime Applications
05 Mining Applications
06 Power Stations

Dimensions

Dimension table

6 rows × 6 columns

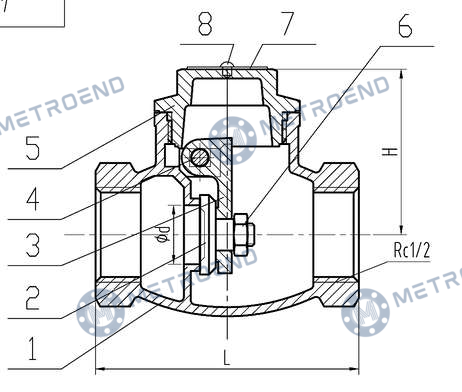

Bronze Threaded Swing Check Valve — Dimension table
DN	NPS	L	H	d	KG
15	1/2"	58	37	12	0,20
20	3/4"	66	43	18	0,25
25	1"	76	49	24	0,36
32	1 1/4"	88	57,5	30,6	0,56
40	1 1/2"	96	63	37	0,90
50	2"	112	72	48,6	1,25

Material

Material specifications

No	Part name (TR)	Part name (EN)	Material
1	GÖVDE	BODY	RG5
2	KLAPE	DISC	RG5 PİRİNÇ / BRASS 1
3	MENTEŞE	HINGE	RG5
4	MENTEŞE PİMİ	HINGE PIN	ST.STEEL
5	TAPA	PLUG	RG5
6	MENTEŞE SOMUNU	HINGE NUT	PİRİNÇ / BRASS
