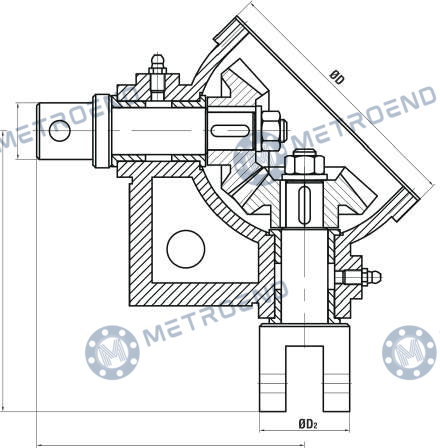

Technical drawing
· /
Marine Equipment
Angle Gear Box
Documents
Product catalog page
PDF 1 page(s) 236 KB EN 01.08.2026
What it does
Marine Equipment
Marine equipment covers the fittings used in the fuel, bilge, ballast, cooling and fire-fighting circuits of vessels and shore facilities. Saltwater corrosion, continuous vibration and limited maintenance opportunity are decisive for these products, and the material and sealing selection is made accordingly. In applications requiring classification society approval, the product must be supplied together with the relevant certificate.
Where it is used
Application areas
- 01 It is used in remote control of valves at a
- 02 90° angle.
- 03 2L
Dimensions
Dimension table
1 rows × 6 columns
← scroll horizontally →
| ØD | L1 | L2 | Ød1 | Ød2 | KG |
|---|---|---|---|---|---|
| 140 | 150 | 142 | 30 | 48 | 6 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | GGG40 |
| 2 | ÇATAL MİL | STEM | GGG40 |
| 3 | BURÇ | BUSH | RG5 |
| 4 | MİL | STEM | SAE 1040 |
| 5 | KAPAK | BONNET | ST37 |
| 6 | DİŞLİ ÇARK | TAPER GEAR | SAE 1050 |
| 7 | KAMA | COTTER | SAE 1040 |
| 8 | YAĞDANLIK | GREASE BOX | STEEL |
