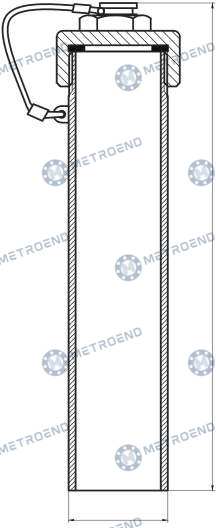

Technical drawing
· /
Marine Equipment

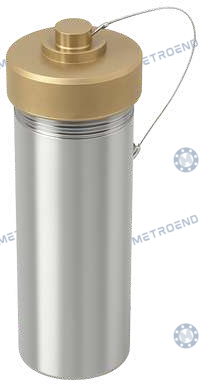

Sounding Pipe
Documents
Product catalog page
PDF 1 page(s) 246 KB EN 01.08.2026
What it does
Marine Equipment
Marine equipment covers the fittings used in the fuel, bilge, ballast, cooling and fire-fighting circuits of vessels and shore facilities. Saltwater corrosion, continuous vibration and limited maintenance opportunity are decisive for these products, and the material and sealing selection is made accordingly. In applications requiring classification society approval, the product must be supplied together with the relevant certificate.
Where it is used
Application areas
- 01 It is used to take measurements on the upper
Dimensions
Dimension table
4 rows × 6 columns
← scroll horizontally →
| NPS | ØD | H | G | G1 | KG |
|---|---|---|---|---|---|
| 1 1/2" | 48,3 | 220 | 1 1/2 | 2" | 1,5 |
| 2" | 60,3 | 220 | 2" | 2 1/2" | 1,8 |
| 2 1/2" | 76,1 | 220 | 2 1/2" | 2,4 | |
| 3" | 88,9 | 220 | 3" | 4 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | BORU | PIPE | ST42 GALVANISED |
| 2 | TAPA | PLUG | BRASS |
| 3 | CONTA | GASKET | NBR |
| 4 | TEL | WIRE | AISI304 |
