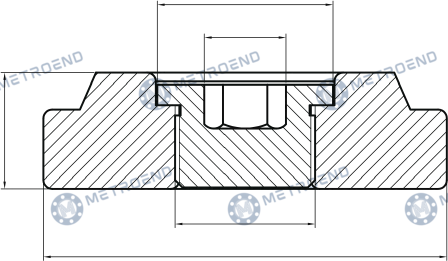

Technical drawing
· /
Marine Equipment

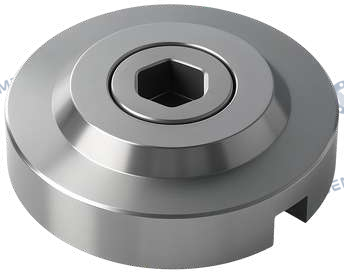

Drain Plug
Documents
Product catalog page
PDF 1 page(s) 220 KB EN 01.08.2026
What it does
Marine Equipment
Marine equipment covers the fittings used in the fuel, bilge, ballast, cooling and fire-fighting circuits of vessels and shore facilities. Saltwater corrosion, continuous vibration and limited maintenance opportunity are decisive for these products, and the material and sealing selection is made accordingly. In applications requiring classification society approval, the product must be supplied together with the relevant certificate.
Where it is used
Application areas
- 01 It is used to safely drain water from tanks when marine vessels are taken for maintenance. ØD1 AA
Dimensions
Dimension table
5 rows × 6 columns
← scroll horizontally →
| ØD | ØD1 | h | AA | R | KG |
|---|---|---|---|---|---|
| 100 | 60 | 40 | 25 | 1 1/2" | 2 |
| 140 | 60 | 40 | 25 | 1 1/2" | 3,65 |
| 160 | 60 | 40 | 25 | 1 1/2" | 5,40 |
| 180 | 70 | 40 | 25 | 2" | 6 |
| 200 | 70 | 40 | 25 | 2" | 8 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | SAE 1040 |
| 2 | TAPA | PLUG | AISI316 |
