Brass Mini Ball Valve

Working pressure PN16
Working temperature -10°C / +120°C
Connection type DIN2999 BSPP

Get a quote on WhatsApp

Documents

Product catalog page

PDF 1 page(s) 250 KB EN 01.08.2026

View Download PDF

What it does

Ball Valves

A ball valve opens and closes by a quarter-turn (90°) rotation of a ball with a bore through its centre. In the fully open position the bore aligns with the pipe cross-section, so pressure drop is very low and flow is virtually unobstructed. Ball valves are common on lines that require fast on/off operation, frequent cycling and tight shut-off; they are not suited to throttling, as partial opening wears the seat rapidly. The two-piece body is an economical and compact solution, while the three-piece body allows maintenance without removing the valve from the line. Three-way models divert or mix the flow.

Where it is used

Application areas

01 Water - Wastewater
02 Heating - Cooling Systems
03 Maritime Applications

Dimensions

Dimension table

7 rows × 6 columns

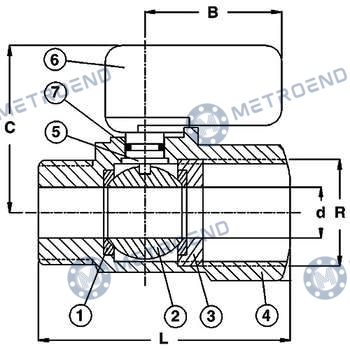

Brass Mini Ball Valve — Dimension table
kolon_1*	DIN2999 BSPP	kolon_3*	kolon_4*	kolon_5*	PN16
1	GÖVDE		BODY	MS58
2	KAPAK		BONNET	MS58
3	KÜRE		BALL	MS58
4		SIZDIRMAZLIK RİNGİ	BALL SEAT	PTFE
5	MİL		STEM	MS58
6	KOL		LEVER		ALUMINIUM
7	O-RING		O-RING	NBR

* This column heading is embedded inside the technical drawing in the source PDF, so it could not be read as text. The values are correct; only the column name still has to be entered manually.

Material
