Brass Threaded Ball Valve

Working pressure PN16 / PN25 / PN40
Working temperature -10°C / +120°C
Connection type DIN2999 BSPP

Get a quote on WhatsApp

Documents

Product catalog page

PDF 1 page(s) 253 KB EN 01.08.2026

View Download PDF

What it does

Ball Valves

A ball valve opens and closes by a quarter-turn (90°) rotation of a ball with a bore through its centre. In the fully open position the bore aligns with the pipe cross-section, so pressure drop is very low and flow is virtually unobstructed. Ball valves are common on lines that require fast on/off operation, frequent cycling and tight shut-off; they are not suited to throttling, as partial opening wears the seat rapidly. The two-piece body is an economical and compact solution, while the three-piece body allows maintenance without removing the valve from the line. Three-way models divert or mix the flow.

Where it is used

Application areas

01 Water - Wastewater
02 Heating - Cooling Systems
03 Maritime Applications

Dimensions

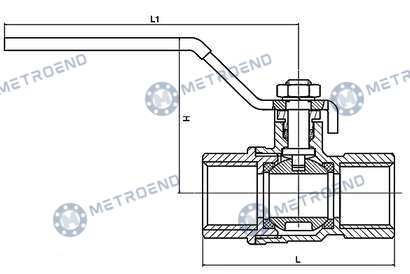

Dimension table

9 rows × 6 columns

Brass Threaded Ball Valve — Dimension table
DN	NPS	L	L1	H	KG
15	1/2"	54	80	37	0,15
20	3/4"	61	95	53	0,25
25	1"	73	115	55	0,45
32	1 1/4"	83	115	59	0,65
40	1 1/2"	95	125	77	0,95
50	2"	113	145	90	1,45
65	2 1/2"	132	230	107	3,65
80	3"	149	250	120	5,60
100	4"	174	250	135	9,10
