Monoblock Ball Valve

Working pressure PN16 / PN40
Working temperature -10°C / +110°C
Connection type DIN EN1092-2

Get a quote on WhatsApp

Documents

Product catalog page

PDF 1 page(s) 371 KB EN 01.08.2026

View Download PDF

What it does

Ball Valves

A ball valve opens and closes by a quarter-turn (90°) rotation of a ball with a bore through its centre. In the fully open position the bore aligns with the pipe cross-section, so pressure drop is very low and flow is virtually unobstructed. Ball valves are common on lines that require fast on/off operation, frequent cycling and tight shut-off; they are not suited to throttling, as partial opening wears the seat rapidly. The two-piece body is an economical and compact solution, while the three-piece body allows maintenance without removing the valve from the line. Three-way models divert or mix the flow.

Where it is used

Application areas

01 Chemical - Petrochemical
02 Water - Wastewater
03 Heating - Cooling Systems
04 Maritime Applications
05 Mining Applications
06 Power Stations

Dimensions

Dimension table

11 rows × 17 columns

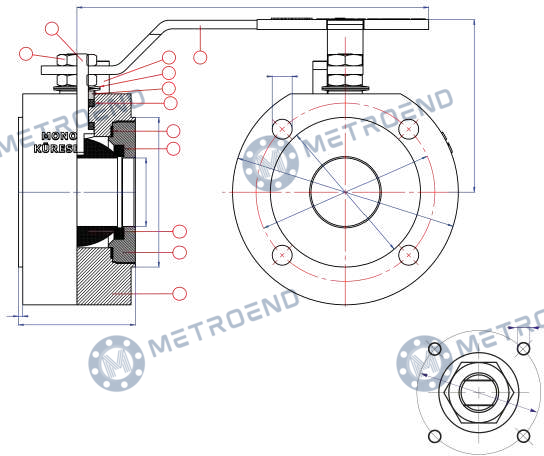

Monoblock Ball Valve — Dimension table
					PN16				PN40
DN	L	KB	h	f	D	Hole	ØK	M	D	Hole	ØK	M	F	G	S	KG
15	39	150	80	2	88	4	65	M12	88	4	65	M12	50	36	M5	1,45
20	42	150	85	2	98	4	75	M12	98	4	75	M12	60	36	M5	1,90
25	47	185	90	2	109	4	85	M12	109	4	85	M12	68	42	M5	2,80
32	58	240	100	2	135	4	100	M16	135	4	100	M16	78	42	M5	5,00
40	65	280	120	3	147	4	110	M16	147	4	110	M16	88	50	M6	6,50
50	84	280	125	3	167	4	125	M16	167	4	125	M16	105	50	M6	10,50
65	105	330	150	3	178	4	145	M16	178	8	145	M16	125	70	M8	14,50
80	120	400	160	3	198	8	160	M16	198	8	160	M16	132	70	M8	21,50
100	150	460	175	3	233	8	180	M16	233	8	190	M20	158	102	M10	36,00
125	200	460	200	3	270	8	210	M16	270	8	220	M20	188	125	M12	65,00
150	235	670	240	3	310	8	240	M20	310	8	250	M22	212	125	M12	85,00

Material

Material specifications

No	Part name (TR)	Part name (EN)	Material
1	GÖVDE	BODY	CARBON ST. / AISI304 / AISI316
2	KAPAK	BONNET	CARBON ST. / AISI304 / AISI316
3	KÜRE	BALL	AISI420 / AISI304 / AISI316
4	MİL	STEM	AISI420
5	KÜRE CONTA	BALL SEAL	PTFE
6	GÖVDE CONTA	BODY SEAL	PTFE
7	BOĞAZ CONTA	NECK SEAL	PTFE
8	BASKI RİNGİ	PRES.RING	ST42
9	ÇANAK PUL	WASHER	CK70 / AISI304
10	KONTRA SOMUN	COUNTER NUT	5.6 / AISI304
11	STOPLAMA PİMİ	STOP. PIM	ST42 / AISI304
12	KOL	HANDLE	ST37 / AISI304
